Nanofiltration System

Home / SYSTEM / Nanofiltration System

MEMBRANE SEPARATION

Ahura Aqua designs and manufactures nanofiltration systems for industrial duties across wastewater recovery, food & beverage, and pharmaceutical manufacturing.

NF shares reverse osmosis’ fundamentals — a concentrated solution forced through a semi-permeable membrane under pressure — but its 0.01–0.001 μm pores sit squarely between UF and RO, opening selective separations the others can’t reach economically.

THE NF ADVANTAGE • SELECTIVE BY DESIGN

It Chooses What to Keep

Nanofiltration rejects organics above ~200–400 Da and divalent salts like MgSO₄ at 90–98%, while letting monovalent salts (NaCl, CaCl₂) pass at just 20–80%. That tunable selectivity unlocks niche separations—colour, hardness and organics removal with partial desalination—that RO and distillation can't deliver economically.
The NF gap: partial desalination—keep beneficial monovalent salts, strip divalents & organics.

Capacity • 4" Module

10–150

m³/day

Capacity • 8" Module

500–3200

m³/day

Membrane Pore Size

0.01–0.001

micron

Organic Cut-Off

>200–400

Daltons

Operating Pressure

<300

psi

WHERE UF SITS

Larger Pores → Smaller Pores

Ultrafiltration belongs to the same membrane family as microfiltration and nanofiltration—the primary difference is the size of particles or molecules each membrane retains. A pre-UF system (RO pre-treatment class such as Toray HFU or Veolia ZeeWeed) handles suspended solids, while a tighter post-UF system polishes water down to 10 kDa for WFI applications.

UF

Ultra-filtration

0.01–0.10 μm

Bacteria, viruses, colloids

NF

THIS SYSTEM

Nano-filtration

0.01–0.001 μm >200–400 Da

Organics, divalent salts, hardness

RO

Reverse Osmosis

~0.0001 μm

Dissolved monovalent salts & ions

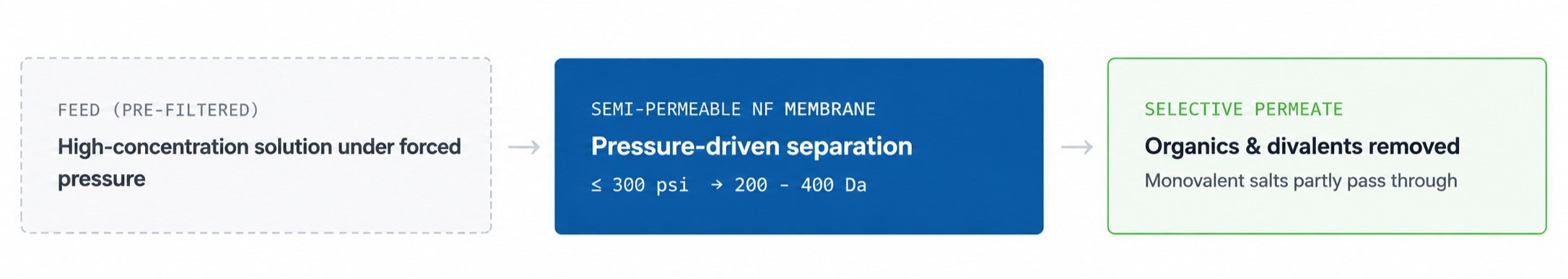

WORKING PRINCIPLE

As with all membrane separation, a robust pre-filtration stage protects the membrane and sustains rejection performance.

WHAT IT REJECTS

CONTAMINANT CLASSES

Endotoxins / pyrogens

Insecticides / pesticides

Nitrates

Sugars

Latex emulsions

SALT REJECTION

Monovalent • NaCl, CaCl₂

20 - 80% 80%

Divalent • MgSO₄

90–98% 80%

he valence gap is the lever—partial desalination tuned to the duty.

ADVANTAGES

Colour Removal

Strips colour bodies from process and effluent streams.

Organic Content

Eliminates dissolved organic load selectively.

Total Hardness

Removes hardness through high divalent rejection.

TDS Reduction

Lowers total dissolved solids with partial desalination.

Protein & Whey Concentration

Concentration duty across the dairy industry.

COD Reduction

Organic & inorganic COD reduction in wastewater applications.
