MEMBRANE SEPARATION

Ahura Aqua brings 27 years of experience designing and manufacturing reverse osmosis systems across pharmaceutical purified & ultra-pure water (API, WFI, Formulations), wastewater recovery & reuse, textile & polyester, pulp & paper and chrome-plating for the automobile industry.

RO membranes are the pinnacle of membrane separation — a high-salt solution is forced through a semi-permeable membrane under high pressure. Contaminating ions concentrate into the reject stream while ultra-pure permeate is delivered for commercial, industrial and municipal use.

THE RO ADVANTAGE • THE PINNACLE OF SEPARATION

Tightest Cut-Off, Widest Duty

Capacity • 4" Module

10–150

m³/day

Capacity • 8" Module

500–3200

m³/day

Membrane Cut off

~0.0001

micron

Operating Pressure

150–1200

psi

Salt Rejection

96–99.7%

System Recovery

35–95%

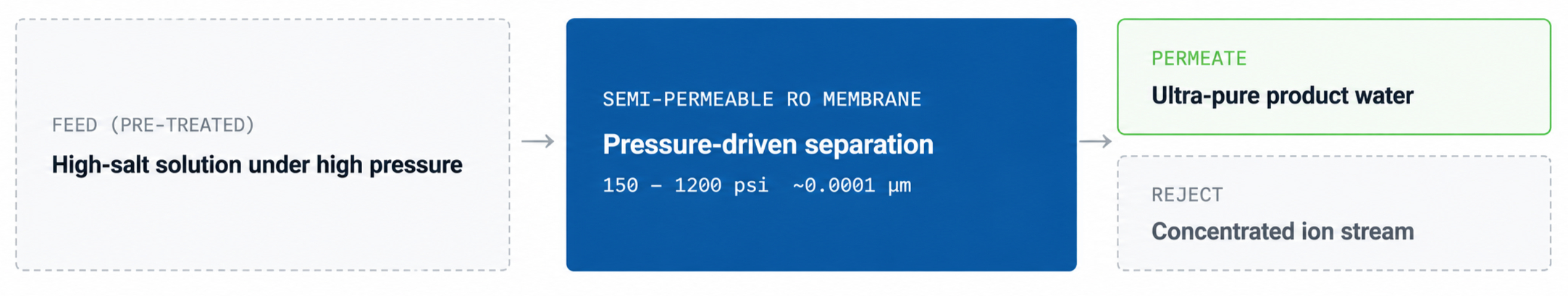

WORKING PRINCIPLE

A robust pre-treatment stage protects the membrane and sustains rejection — RO delivers maximum efficiency only under optimum operating conditions.

RO SYSTEM CONFIGURATIONS

BOREWELL • MUNICIPAL • PROCESS FEED

The workhorse configuration — low-to-moderate salinity feed from borewell or municipal sources reduced to high-quality process or potable water.

Brackish Water RO

BOREWELL • MUNICIPAL • PROCESS FEED

The workhorse configuration — low-to-moderate salinity feed from borewell or municipal sources reduced to high-quality process or potable water.

FEED TDS

1,000–10,000 ppm

MEMBRANE Ø

4" or 8"

OPERATING PRESSURE

150–400 psi

RECOVERY

70–80%

CONTROL

Microprocessor / PLC

Sea Water RO

COASTAL • ISLAND • DESALINATION

High-pressure desalination for coastal and offshore duties, with energy-recovery devices that reclaim pressure energy from the reject stream.

FEED TDS

up to 45,000 ppm

MEMBRANE Ø

8"

OPERATING PRESSURE

up to 1,200 psi

RECOVERY

35–45%

ENERGY RECOVERY

Integrated ERD

Multi-Stage Wastewater Recovery RO

REUSE • ZLD-READY

Staged RO arrays push recovery toward Zero Liquid Discharge — treated effluent is recovered for reuse while concentrated reject is handed off to thermal evaporation.

FEED

ETP/STP treated effluent

ARRAY

2–3 pass, multi-stage

RECOVERY

up to 90–95%

MEMBRANE

Fouling-resistant, high-rejection

REJECT HANDLING

→ MEE / MVR evaporation

Ultra-Pure Water RO

PW • WFI • SEMICONDUCTOR UPW

The purity ceiling — double-pass RO feeding EDI and final polishing for pharmaceutical PW & WFI and semiconductor-grade ultra-pure water.

CONFIGURATION

Double-pass RO + EDI

RESISTIVITY

up to 18.2 MΩ.cm

CONSTRUCTION

Sanitary, hot-water sanitisable

STANDARDS

USP / EP • SEMI grades

POLISHING

EDI • UV • UF

WHAT IT REJECTS

CONTAMINANT CLASSES

Dissolved salts & ions

SALT REJECTION

Monovalent

96–99% 99%

Divalent • MgSO₄ / SO₄

90–99.7% 99.7%

Organics

>99% 98%
